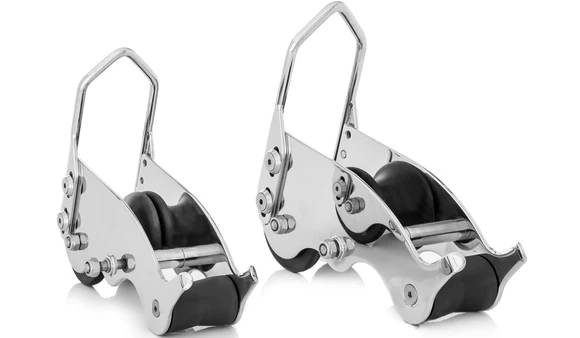

The ULTRA Bow Roller is designed to guide the anchor and chain during deployment and retrieval while helping to maintain proper alignment at the bow. By supporting controlled movement, it can reduce wear on both the anchoring equipment and the vessel.

A properly aligned bow roller helps minimise impact loads, unwanted movement, and metal-to-metal contact during retrieval. This can reduce noise, surface damage, and wear around the bow area while supporting smoother anchor handling.

Delrin is a high-performance engineering material known for its low friction and wear resistance. In bow roller applications, it helps provide smooth anchor and chain movement while maintaining its shape and performance over extended periods of marine use.

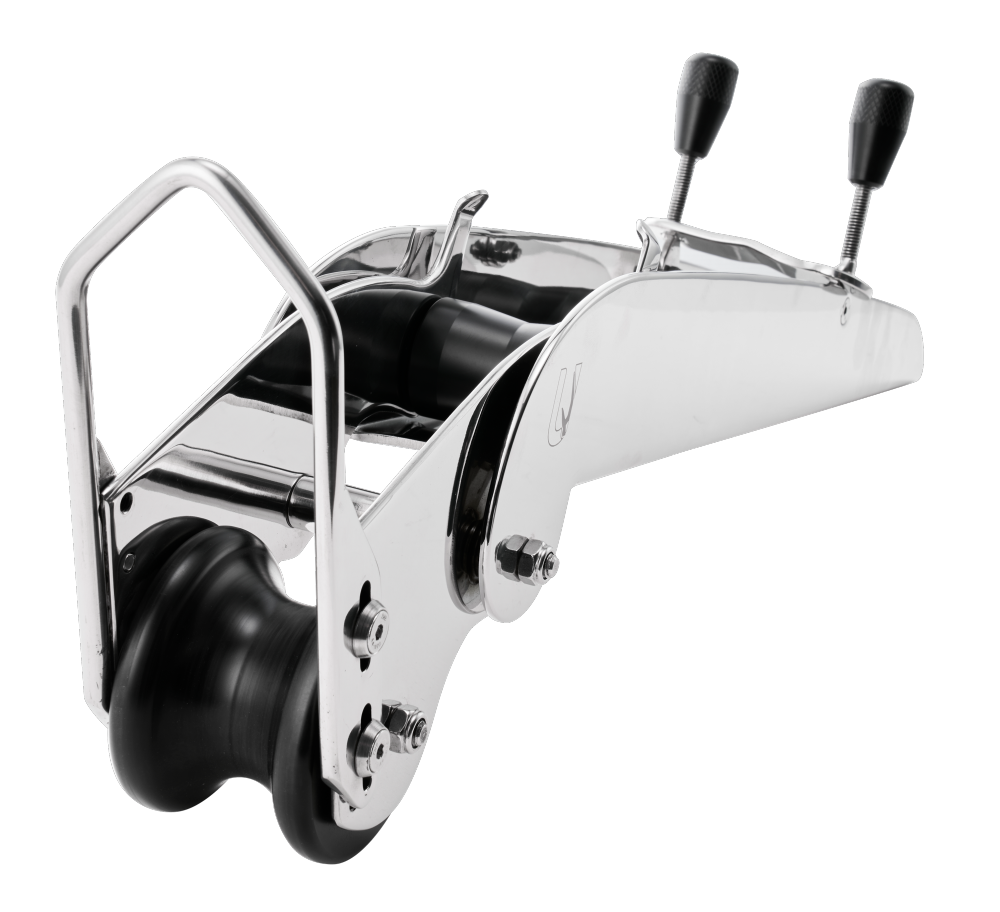

The retaining hoop is designed to keep the chain and anchor guided during operation and limit unnecessary movement when the anchor is stowed. Proper guidance can help improve stability at the bow and support more predictable anchor recovery.

The bow roller, anchor, and swivel function as an integrated system. When these components are correctly matched, the anchor can align, self-correct, and seat more naturally during retrieval, helping to reduce stress on the overall anchoring arrangement.

Open bow roller designs can allow the anchor and swivel greater freedom of movement during retrieval. This may help support natural alignment and self-correction, particularly in anchoring systems where the anchor is designed to rotate into a specific position before seating.

Marine-grade stainless steels and engineered polymers are commonly used because they combine corrosion resistance, durability, and smooth operating characteristics. These materials are well suited to the demanding conditions encountered in marine anchoring systems.

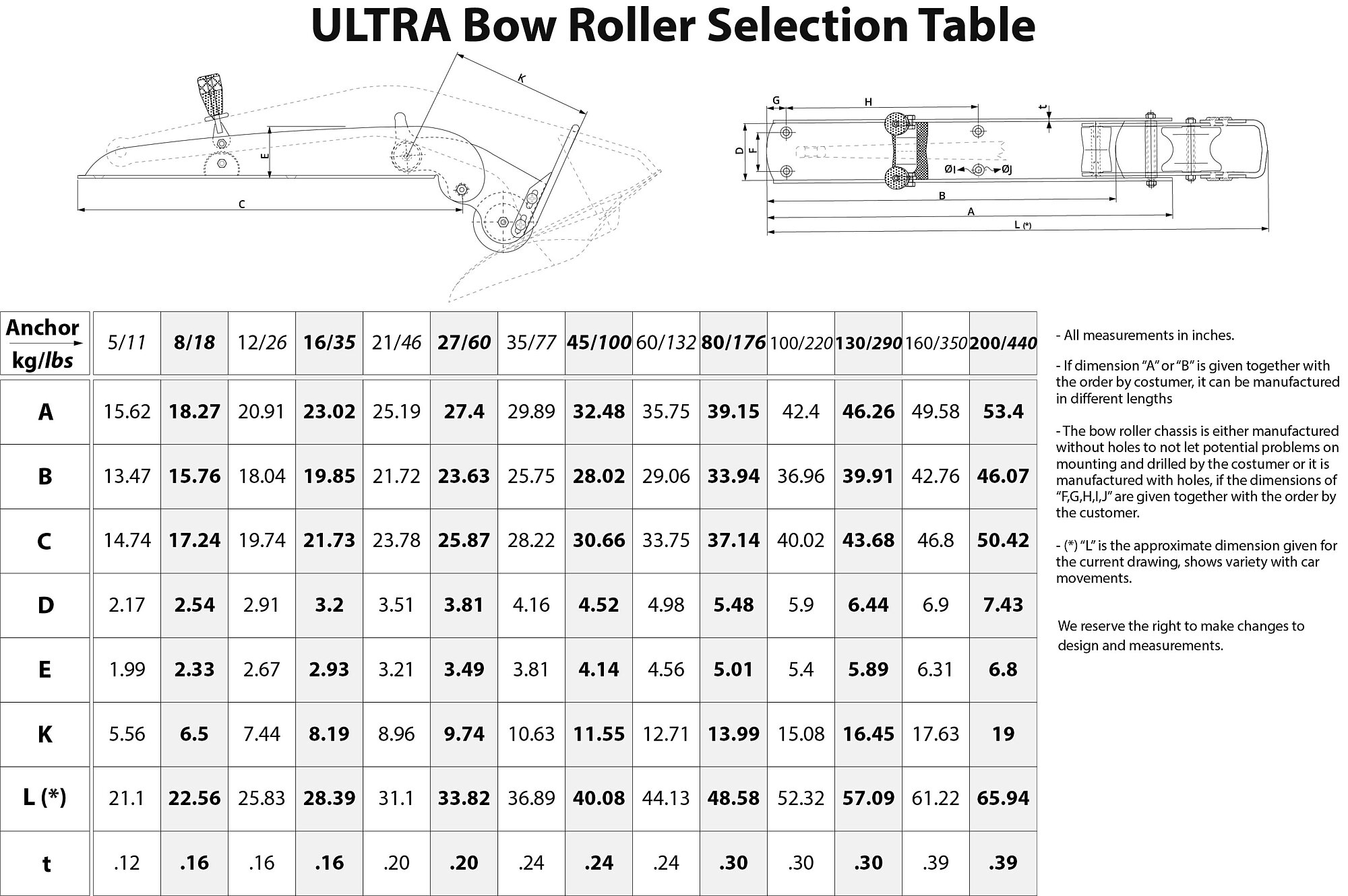

Selection should take into account the anchor type, anchor size, swivel design, available space at the bow, and the vessel's overall anchoring arrangement. A bow roller should provide sufficient clearance and support smooth deployment and recovery without restricting anchor movement.
