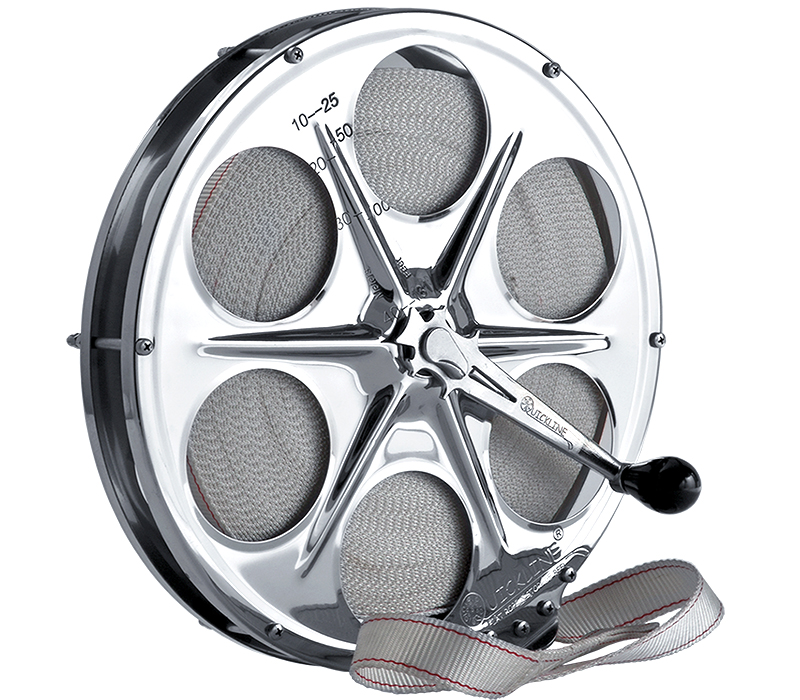

ULTRALINE Flat Rope Reel

Our ULTRALINE Flat Rope Reel for compact line storage and clean handling on board

The ULTRALINE Flat Rope Reel is designed to store stern anchor lines, towlines, or mooring lines in a compact, stainless-steel housing. The line runs inside the hub, helping keep surrounding deck equipment clear. Deployment and retrieval are straightforward: pay out the line as needed and wind it back in after use. The system is designed for line management, with the line secured to a cleat when under load.

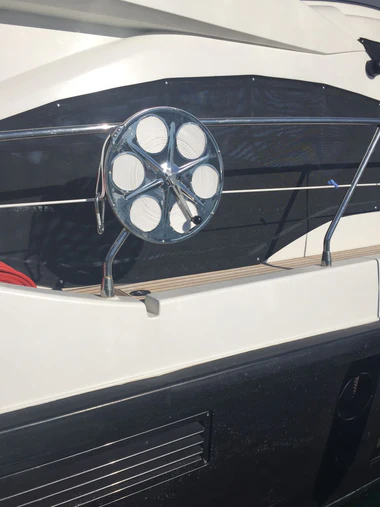

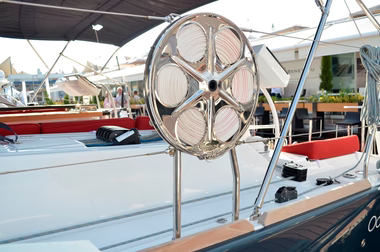

ULTRALINE flat rope reel system on the side of a yacht

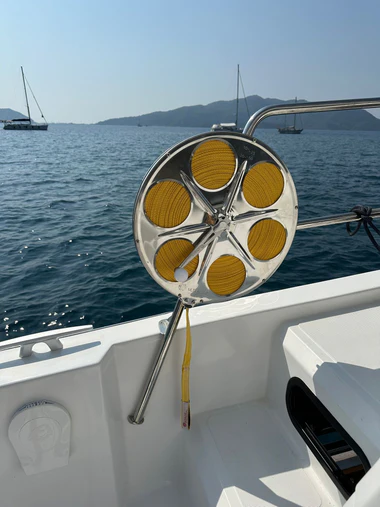

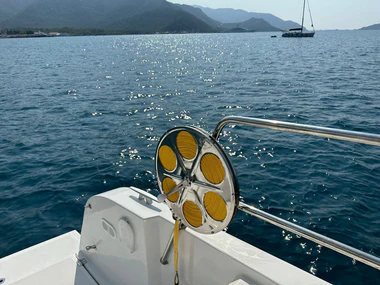

ULTRALINE flat rope reel system on a yacht with ocean in the background

Key performance features

Polished 316L stainless-steel housing; the housing does not rotate while the line runs inside the hub.
Compact storage solution for stern anchor lines, towlines, or mooring lines.
Available with UV-resistant flat line in lengths from 40 m to 100 m.
Twin rollers and guides support controlled spooling and help squeeze excess water from the flat rope.

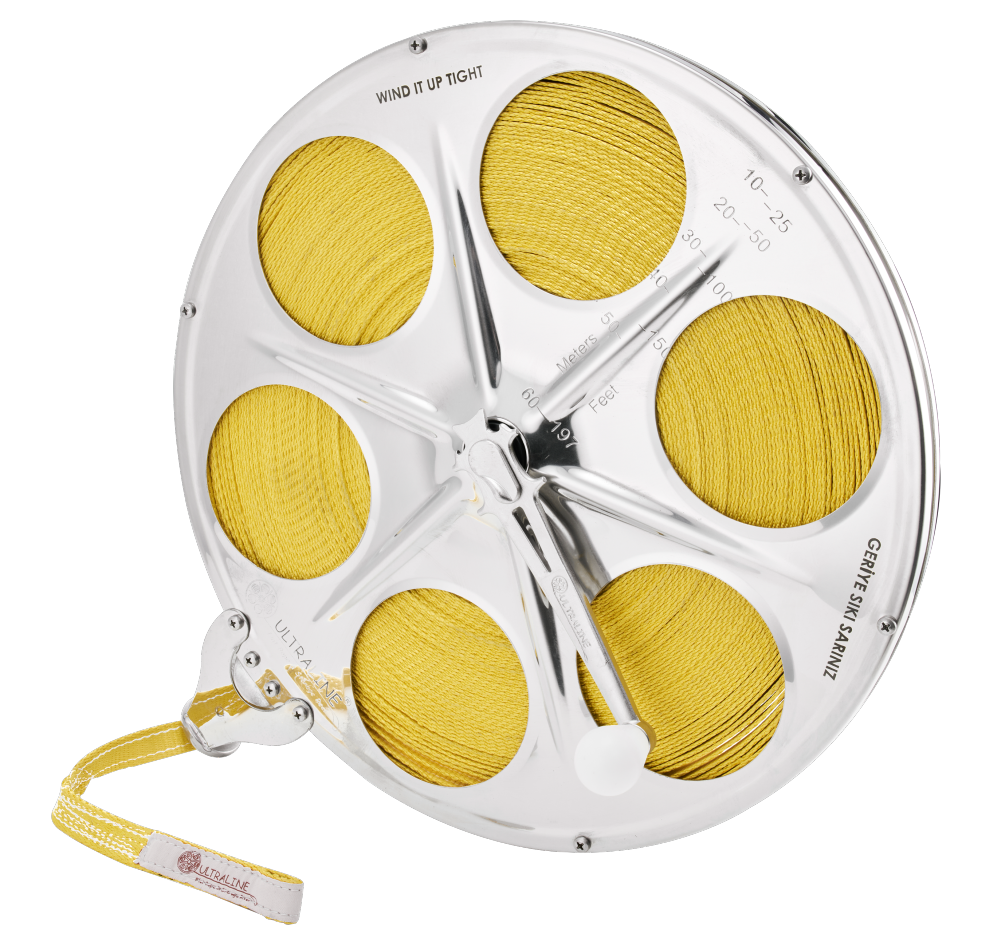

Rope guides include a scale indicating the approximate amount of line in use; hole guides support quicker drying.

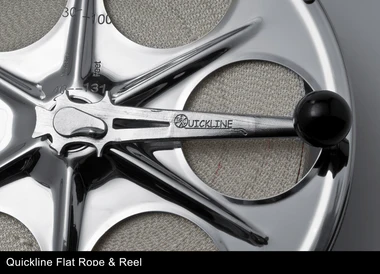

Multifunction handle fits a standard winch-handle socket and includes integrated keys and a shackle buster.
Suitable for rail or bulkhead mounting; mounting kit included.
Bitter end attachment uses velcro designed to release under force without damaging rail or bulkhead.
2-year warranty.

Click on the + in the picture to see the key benefits of our ULTRA Anchor:

Design and construction

ULTRALINE is designed as a compact, stainless-steel line management system. The housing is specified as highly polished 316L stainless steel and is built so that the line rotates inside the hub rather than turning the housing. The system is supplied with a floating narrow Dyneema® flat line and is a quiet-running solution compared with many other flat lines.

Construction details

Housing: 316L stainless steel, polished – non-rotating housing concept.
Line: UV-resistant flat line, provided with a stitched eye at one end, spool attachment at the other.

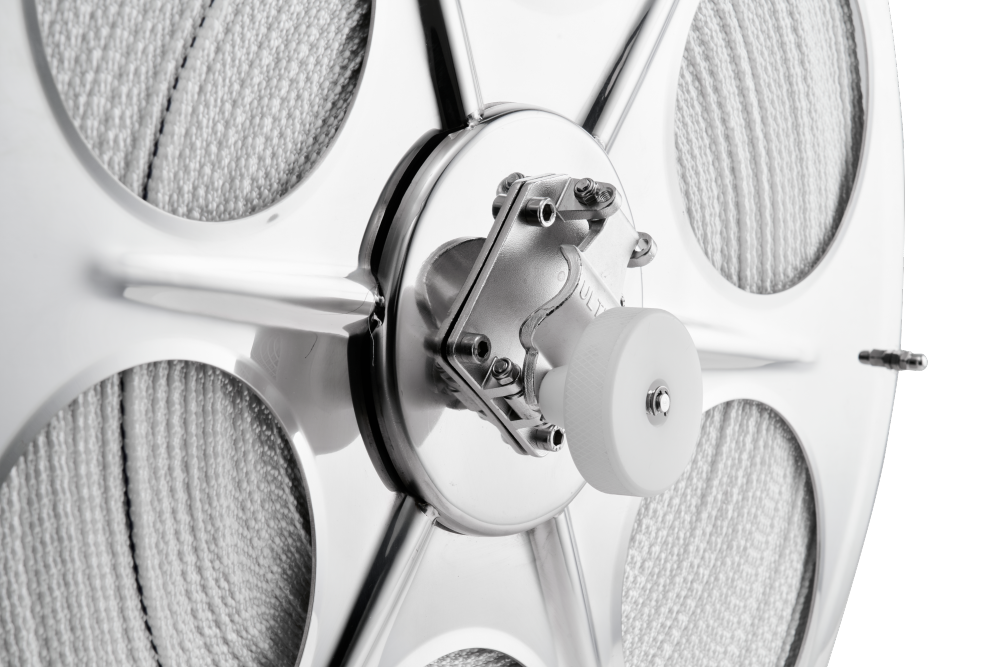

Handling: twin rollers and guides support spooling (guides support drying and tracking of line usage)
Installation: designed for standard rail or bulkhead mount (comprehensive mounting kit included)
The reel is not a load-bearing device: Line must be cleated off when anchored or moored.

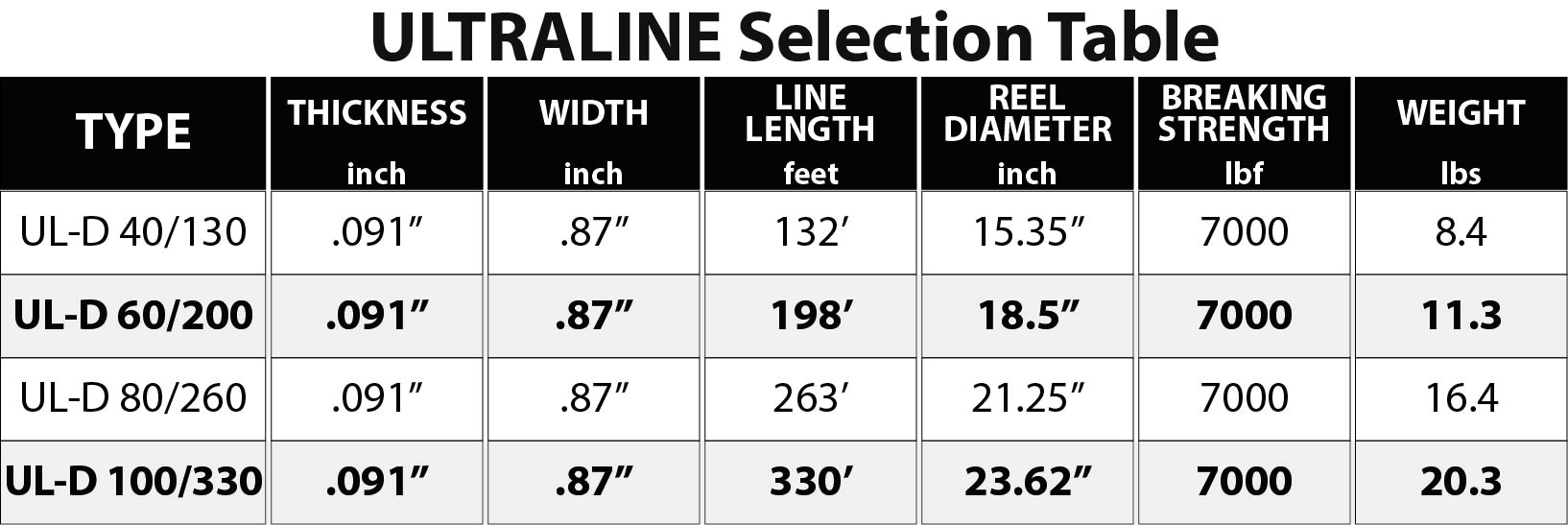

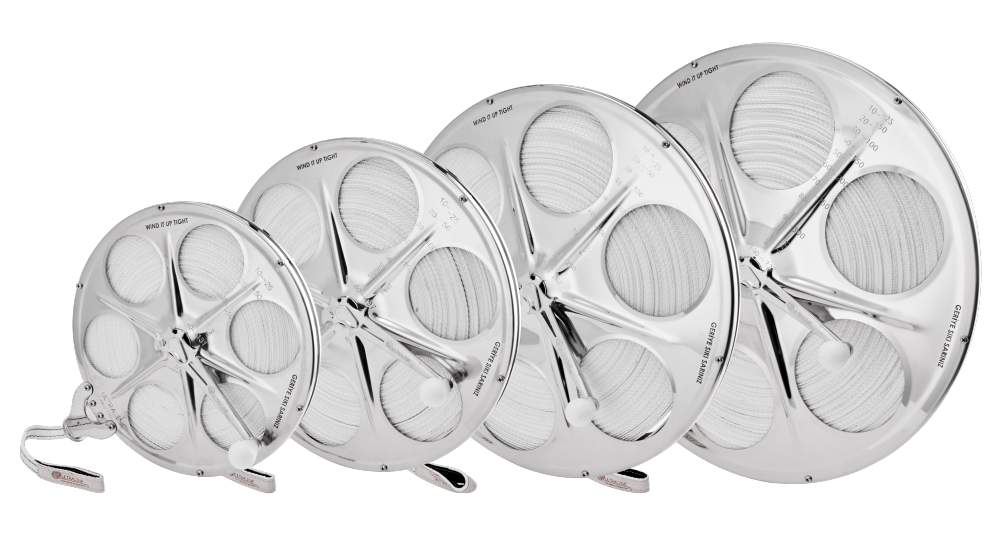

Selecting the right ULTRALINE Flat Rope Reel model

Downloads

FAQs

What is the ULTRALINE Flat Rope Reel designed for?

The ULTRALINE Flat Rope Reel is designed for the storage and handling of stern anchor lines, towlines, and mooring lines. It provides a compact line-management solution that helps keep deck areas organised and clear.

How does the ULTRALINE Flat Rope Reel store the rope?

The system is designed so that the rope runs inside the hub while the stainless-steel housing remains stationary. This non-rotating housing concept supports controlled handling during deployment and retrieval.

What rope lengths are available for the ULTRALINE Flat Rope Reel?

The ULTRALINE Flat Rope Reel is available with UV-resistant flat rope in lengths ranging from 40 metres to 100 metres, depending on the selected model.

What is the purpose of the twin rollers and guides?

The twin rollers and guides support controlled spooling of the flat rope during use. They are also designed to help remove excess water from the rope and support organised line handling.

How can users monitor the amount of rope deployed?

The rope guides include a scale that indicates the approximate amount of rope currently in use. This helps users keep track of line deployment during operation.

Where can the ULTRALINE Flat Rope Reel be installed?

The reel is designed for rail mounting or bulkhead mounting. A mounting kit is included to support installation on board.

Is the ULTRALINE Flat Rope Reel a load-bearing device?

No. The ULTRALINE Flat Rope Reel is a line-management system and is not designed to carry anchoring or mooring loads. When the line is under load, it must be secured to a cleat.
